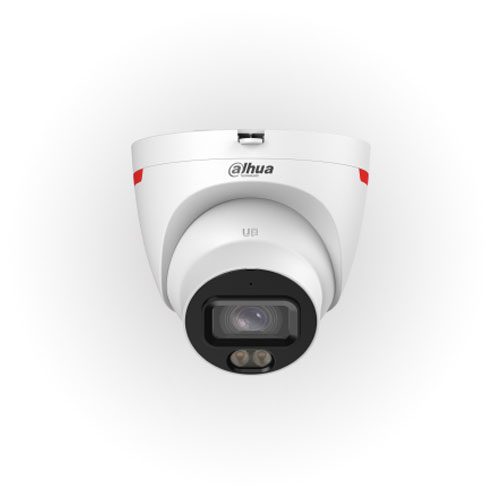

قیمت دوربین داهوا مدل DH-IPC-HDW2449T-S-PRO

Image Sensor 1/1.8″ CMOS
Max. Resolution 2688 (H) × 1520 (V)
ROM 128 MB
RAM 256 MB
Scanning System Progressive
Electronic Shutter Speed Auto/Manual 1/3 s–1/100,000 s
Min. Illumination 0.0001 lux@F1.0
S/N Ratio >56 dB
Illumination Distance Up to 30 m (98.43 ft) (Warm light)
Illuminator On/Off Control Auto;Manual
Illuminator Number 2 (Warm light)
Angle Adjustment
Pan: 0°–360°
Tilt: 0°–78°
Rotation: 0°–360°
Lens
Lens Type Fixed-focal
Lens Mount M16
Focal Length 2.8 mm; 3.6 mm
Max. Aperture F1.0
Field of View 2.8 mm: H: 112°; V: 60°; D: 134°
3.6 mm: H: 94°; V: 50°; D: 113°
Iris Control Fixed
Close Focus Distance 2.8 mm: 2 m (6.56 ft)
3.6 mm: 3 m (9.84 ft)
DORI
Distance
Lens Detect Observe Recognize Identify
2.8 mm 57.9 m
( 189.96 ft)
23.2 m
( 76.12 ft)
11.6 m
( 38.06 ft)
5.8 m
( 19.03 ft)
3.6 mm 70.3 m
( 230.64 ft)
28.1 m
( 92.19 ft)
14.1 m
( 46.26 ft)
7.0 m
( 22.97 ft)
*DORI (Detect, Observe, Recognize, Identify) is a standard system
(EN-62676-4) for defining the ability of a person viewing the
video to distinguish persons or objects within a covered area.
The numbers in this table do not reflect intelligent function
distances. For intelligent function distances, refer to installation
and commissioning manual/project design tool.
Intelligence
IVS (Perimeter Protection)
Intrusion, tripwire (the two functions support the
classification and accurate detection of vehicle and
human);
SMD SMD Plus
Smart Search
Work together with Smart NVR to perform refine
intelligent search, event extraction and merging to
event videos
Video
Video Compression H.265; H.264; H.264H; H.264B; MJPEG (Only supported
by the sub stream)
Smart Codec Smart H.265+; Smart H.264+
Video Frame Rate
Main stream: 2688 × 1520@(1–20 fps)/2560 ×
1440@(1–25/30 fps)
sub stream: 704 × 576@(1–25 fps)/704 × 480@(1–30
fps)
*The values above are the max. frame rates of
each stream; for multiple streams, the values will be
subjected to the total encoding capacity.
Streaming Capability 2 streams
Resolution
4M (2688 × 1520/2560 × 1440); 3M (2304 × 1296);
1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 ×
720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF
(352 × 288/352 × 240)
Bit Rate Control VBR;CBR
Video Bit Rate H.264: 32 kbps–6144 kbps;
H.265: 12 kbps–6144 kbps
Day/Night Color/B/W
BLC Yes
HLC Yes
WDR 120 dB
White Balance Auto; natural; street lamp; outdoor; manual; regional
custom
Gain Control Auto/Manual
Noise Reduction 3D NR
Motion Detection OFF/ON (4 areas, rectangular)
Region of Interest (RoI) Yes (4 areas)
Smart Illumination Yes
Image Rotation 0°/90°/180°/270° (Support 90°/270° with 2688 × 1520
resolution and lower)
Mirror Yes
Privacy Masking 4 areas
LDC Yes
Audio
Built-in MIC Yes, built-in Mic
Audio Compression G.711a; G.711Mu; PCM; G.726
Alarm
Alarm Event
No SD card; SD card full; SD card error; network
disconnection; IP conflict; illegal access; motion
detection; video tampering; tripwire; intrusion; audio
detection; voltage detection; SMD; security exception
Network
Network Port RJ-45 (10/100 Base-T)
SDK and API Yes
Network Protocol
IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP;
RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP;
NTP; Multicast; ICMP; IGMP; NFS; PPPoE; P2P; Bonjour;
Auto Registration
Interoperability ONVIF (Profile S & Profile G & Profile T); CGI
User/Host 20 (Total bandwidth: 48 M)
| DH-IPC-HDW2449T-S-PRO
Storage FTP; SFTP; Micro SD card (support max. 256 GB); NAS
Browser IE; Chrome; Firefox
Management Software Smart PSS Lite; DSS; DMSS
Mobile Client iOS;Android
Security
Digest;WSSE;Account lockout;Security logs;IP/MAC
filtering;Generation and importing of X.509
certification;syslog;HTTPS;802.1x;Trusted boot;Trusted
execution;Trusted upgrade;Session security;Security
warning
Certification
Certifications
CE-LVD: EN62368-1;
CE-EMC: Electromagnetic Compatibility Directive
2014/30/EU;
Power
Power Supply 12 VDC; PoE
Power Consumption
Basic: 2.0 W (12 VDC); 2.5 W (PoE);
Max.: 5.3 W (12 VDC); 6.4 W (PoE) (H.265+ intelligence
on + WDR + illuminator intensity)
Environment
Operating Temperature –40 °C to +60 °C (–40 °F to +140 °F)
Operating Humidity ≤95% (RH), non-condensing
Storage Temperature –40 °C to +60 °C (–40 °F to +140 °F)
Storage Humidity ≤95% (RH), non-condensing
Protection IP67
Anti-corrosion Level
Basic Protection
*The products are designed for general use and are
applicable even in areas with no specific requirements
for anti-corrosion protection.
Structure
Casing Material Inner core: Metal;
Cover: Plastic
Product Dimensions 109.5 mm × Φ109.9 mm (4.31″ × Φ4.33″)
Net Weight 0.42 kg (0.93 lb)
Gross Weight 0.59 kg (1.30 lb)
Ordering Information
Type Model Description
IP CAMERA DH-IPC-HDW2449T-S-PRO
4MP WizColor Fixed-focal
Eyeball WizSense Network
