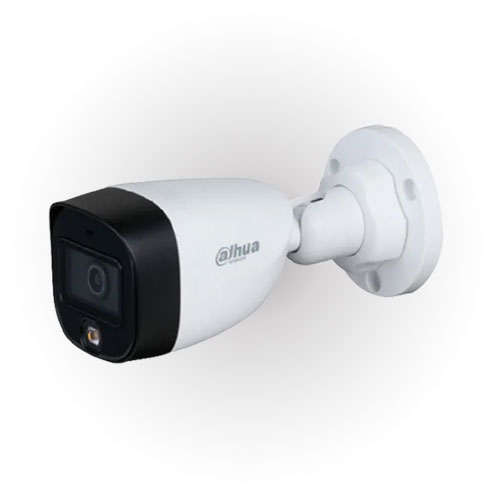

قیمت دوربین داهوا مدل DH-HAC-HFW1209CP-A-LED-0280B-S2

Camera

Image Sensor 1/2.8 inch CMOS
Effective Pixels 1920 (H) × 1080 (V), 2MP
Scanning System Progressive
Electronic Shutter Speed PAL: 1/25 s–1/100000 s
NTSC: 1/30 s–1/100000 s
S/N Ratio > 65 dB
Minimum Illumination 0.01 Lux/F1.6, 0 Lux white light on
Illumination Distance Distance up to 20 m (65.61 ft)
Illuminator On/Off Control Auto; manual
Illuminator Number 1
Pan/Tilt/Rotation Range
Pan: 0°–360°
Tilt: 0°–90°
Rotation: 0°–360°

Lens

Lens Type Fixed-focal
Mount Type M12
Focal Length 2.8 mm; 3.6 mm
Max. Aperture F1.6
Field of View
2.8 mm: 126.2° × 106° × 56.5°
(diagonal × horizontal × vertical);
3.6 mm: 103.6° × 86.9° × 46.3°
(diagonal × horizontal × vertical)
Iris Type Fixed iris
Close Focus Distance 2.8 mm: 0.7 m (2.29 ft);
3.6 mm: 1.2 m (3.94 ft)

DORI Distance

DORI Distance
Lens Detect Observe Recognize Identify
2.8 mm 43.9 m
(144.02 ft)
17.5 m
(57.41 ft)
8.8 m
(28.87 ft)
4.4 m
(14.43 ft)
3.6 mm 55.2 m
(181.1 ft)
22.1 m
(72.5 ft)
11.0 m
(36.1 ft)
5.5 m
(18.0 ft)

Video

Frame Rate
CVI:
PAL: 1080p@25 fps; 720p@25 fps;
NTSC: 1080p@30 fps; 720p@30 fps;
AHD:
PAL: 1080p@25 fps;
NTSC: 1080p@30 fps
TVI:
PAL: 1080p@25 fps;
NTSC: 1080p@30 fps
CVBS:
PAL: 960H;
NTSC: 960H
Resolution 1080p (1920 × 1080); 720p (1280 × 720); 960H (960 ×
576/960 × 480)
BLC BLC/DWDR
WDR DWDR
White Balance Auto; manual
Gain Control Auto; manual
www.dahuasecurity.com
Noise Reduction 2D NR
Smart Light Yes
Mirror Off/On
Privacy Masking Off/On (8 area, rectangle)

Certifications

Certifications CE (EN55032, EN55024, EN50130-4,EN60950-1)
FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014)

Port

Video Output Video output choices of CVI/TVI/AHD/CVBS by one
BNC port
Audio Interface N/A

Power Supply 12V ±30% DC
Power Consumption Max 3.1W (12V DC, white light on)

Environment

Operating Temperature –40°C to +60°C (–40°F to 140°F); <95% (noncondensation)
Storage Temperature –40°C to +60°C (–40°F to 140°F); <95% (noncondensation)
Protection Grade IP67

Structure

Casing Metal front cover + plastic main body + plastic bracket
Camera Dimensions 161.3 mm × 69.7 mm × 70.0 mm (6.35″ × 2.75″ × 2.75″)
Net Weight 0.20 kg (0.44 lb)
Gross Weight 0.28 kg (0.62 lb)
